Helm部署Prometheus与自定义告警

2026/01/13

环境准备

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
# 使用kind部署k8s集群，版本v1.31，有代理
curl -Lo ./kind https://kind.sigs.k8s.io/dl/v0.31.0/kind-linux-amd64
chmod +x ./kind
sudo mv ./kind /usr/local/bin/kind

cat > kind-config.yaml <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
networking:
  apiServerAddress: "192.168.10.100"  # 允许外部访问，kind默认只允许本机访问
  apiServerPort: 6443                 # 固定一个外部端口（可选）
nodes:
- role: control-plane
  image: kindest/node:v1.31.0
  extraMounts:
    - hostPath: /var/run/docker.sock
      containerPath: /var/run/docker.sock
- role: worker
  image: kindest/node:v1.31.0
  extraMounts:
    - hostPath: /var/run/docker.sock
      containerPath: /var/run/docker.sock
- role: worker
  image: kindest/node:v1.31.0
  extraMounts:
    - hostPath: /var/run/docker.sock
      containerPath: /var/run/docker.sock
EOF

kind create cluster --config kind-config.yaml  --name ws-k8s
kubectl get nodes
NAME                   STATUS   ROLES           AGE   VERSION
ws-k8s-control-plane   Ready    control-plane   18m   v1.31.0
ws-k8s-worker          Ready    <none>          18m   v1.31.0
ws-k8s-worker2         Ready    <none>          18m   v1.31.0

# 顺手装一个metrics-server（可选）
wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
# 找到spec.template.spec.containers[0].args中添加
          - --kubelet-insecure-tls
          - --kubelet-insecure-tls=true
kubectl apply -f components.yaml

# 安装helm
wget https://get.helm.sh/helm-v4.0.4-linux-amd64.tar.gz
tar -xf helm-v4.0.4-linux-amd64.tar.gz
cp linux-amd64/helm /usr/bin/
helm version

# 添加仓库
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm search repo kube-prometheus-stack
NAME                                            CHART VERSION   APP VERSION     DESCRIPTION
prometheus-community/kube-prometheus-stack      80.13.2         v0.87.1         kube-prometheus-stack collects Kubernetes manif...

Helm部署

helm部署默认安装主要组件（依赖values.yaml中的变量），包括Prometheus、altermanager、grafana。

同时还会部署监控组件node_exporter，kube-state-metrics等组件，并且默认带了对于k8s系统组件比如dns、etcd、apiserver等的监控

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
# 下载到本地
helm pull prometheus-community/kube-prometheus-stack --version 80.13.2
tar -xf kube-prometheus-stack-80.13.2.tgz
cd kube-prometheus-stack/

# 安装release
helm install prometheus ./ -f values.yaml
NAME: prometheus
LAST DEPLOYED: Fri Jan  9 17:19:43 2026
NAMESPACE: default
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
NOTES:
kube-prometheus-stack has been installed. Check its status by running:
  kubectl --namespace default get pods -l "release=prometheus"

Get Grafana 'admin' user password by running:

  kubectl --namespace default get secrets prometheus-grafana -o jsonpath="{.data.admin-password}" | base64 -d ; echo

Access Grafana local instance:

  export POD_NAME=$(kubectl --namespace default get pod -l "app.kubernetes.io/name=grafana,app.kubernetes.io/instance=prometheus" -oname)
  kubectl --namespace default port-forward $POD_NAME 3000

Get your grafana admin user password by running:

  kubectl get secret --namespace default -l app.kubernetes.io/component=admin-secret -o jsonpath="{.items[0].data.admin-password}" | base64 --decode ; echo

# 查看服务状态
kubectl get pods
NAME                                                     READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0   2/2     Running   0          5m47s
prometheus-grafana-fd588f886-zjlpf                       3/3     Running   0          6m17s
prometheus-kube-prometheus-operator-65685b655d-8sbvv     1/1     Running   0          6m17s
prometheus-kube-state-metrics-698d844f6b-xbx5v           1/1     Running   0          6m17s
prometheus-prometheus-kube-prometheus-prometheus-0       2/2     Running   0          5m47s
prometheus-prometheus-node-exporter-pgzkx                1/1     Running   0          6m17s
prometheus-prometheus-node-exporter-rq2pt                1/1     Running   0          6m17s
prometheus-prometheus-node-exporter-wzwfm                1/1     Running   0          6m17s

kubectl get svc
NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
alertmanager-operated                     ClusterIP   None            <none>        9093/TCP,9094/TCP,9094/UDP   5m53s
prometheus-grafana                        ClusterIP   10.96.61.96     <none>        80/TCP                       6m23s
prometheus-kube-prometheus-alertmanager   ClusterIP   10.96.212.51    <none>        9093/TCP,8080/TCP            6m23s
prometheus-kube-prometheus-operator       ClusterIP   10.96.19.63     <none>        443/TCP                      6m23s
prometheus-kube-prometheus-prometheus     ClusterIP   10.96.120.45    <none>        9090/TCP,8080/TCP            6m23s
prometheus-kube-state-metrics             ClusterIP   10.96.89.145    <none>        8080/TCP                     6m23s
prometheus-operated                       ClusterIP   None            <none>        9090/TCP                     5m53s
prometheus-prometheus-node-exporter       ClusterIP   10.96.161.171   <none>        9100/TCP                     6m23s

# 端口映射到本地以访问网页
kubectl port-forward --address=0.0.0.0 svc/prometheus-kube-prometheus-prometheus 9090:9090 &
kubectl port-forward --address=0.0.0.0 svc/prometheus-grafana 3000:80 &
kubectl port-forward --address=0.0.0.0 svc/prometheus-kube-prometheus-alertmanager 9093:9093 &

变量文件参数说明

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
# values.yaml
...
prometheus:
  ...
  prometheusSpec:
    ...
    scrapeInterval: "" 		# 全局采集间隔，默认30s
    evaluationInterval: 30s  # 规则评估间隔，默认30s
    retention: 10d 			# 数据保留时间，默认10天
    retentionSize: ""		# 数据保留大小（可选），如50GiB
    storageSpec：{} 		   # 存储卷配置，可以选用供应商来提供存储
    additionalScrapeConfigs: [] # 手动添加的监控项job
    serviceMonitorSelectorNilUsesHelmValues: True # 是否开启serviceMonitor的自动发现
    serviceMonitorSelector: {} # serviceMonitor匹配的自动标签
    ruleSelectorNilUsesHelmValues：# 控制 PrometheusRule 的自动发现行为
...
altermanager:
  enabled: true # 是否部署
  ...
  config:
    global:
      resolve_timeout: 5m # 告警恢复时间
    inhibit_rules: # 告警抑制规则
		...
    route: # 主路由规则
      group_by: ['namespace']
      group_wait: 30s # 同一组内第一个告警等待 30 秒再发送（收集更多告警）
      group_interval: 5m # 同一组告警发送间隔（避免频繁通知）
      repeat_interval: 12h # 已解决告警重新发送的间隔
      ...
grafana: # 略，grafana没啥好配置的
  enabled: true
...
defaultRules: # 默认规则，是否打开，选择false，后面我们自己创建规则
  create: false

Prometheus监控k8s

helm安装时，会安装名为monitoring.coreos.com/v1的CRD，这是官方推荐的方式，可以通过crd直接创建kind为ServiceMonitor和PodMonitor的监控规则

Prometheus提供3种方法进行监控：

  • ServiceMonitor（监控Service自动发现）
  • PodMonitor（监控pod自动发现）
  • additionalScrapeConfigs（传统方式手动添加）

自定义监控nginx

默认Nginx不暴露Prometheus格式的指标（如nginx_connections_active）

方案 优点 缺点
stub_status + Exporter 轻量级，官方支持 需要额外Sidecar容器
OpenTelemetry插件 单容器方案，支持更多指标 需要重新编译Nginx（复杂）
黑盒监控 无需修改Nginx配置 只能监控基础HTTP状态（非内部指标）

部署nginx

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
# 创建一个nginx，nginx-deployment.yaml
# nginx-deployment.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
        - containerPort: 8080  # 暴露 stub_status 端口
        volumeMounts:
        - name: nginx-config
          mountPath: /etc/nginx/conf.d/nginx_status.conf
          subPath: nginx_status.conf  # 仅挂载单个文件
      volumes:
      - name: nginx-config
        configMap:
          name: nginx-config  # 引用ConfigMap
# nginx-service.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  selector:
    app: nginx
  ports:
    - name: http
      protocol: TCP
      port: 80
      targetPort: 80
    - name: http-status  # 暴露 stub_status 端口
      protocol: TCP
      port: 8080
      targetPort: 8080
kubectl apply -f nginx-deployment.yaml

# 创建nginx配置文件，打开stub_status模块
# nginx-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-config
data:
  nginx_status.conf: |
    server {
        listen 8080;
        server_name localhost;
        location /nginx_status {
            stub_status on;
            access_log off;
            allow all;
            deny all;
        }
    }

kubectl apply -f nginx-configmap.yaml

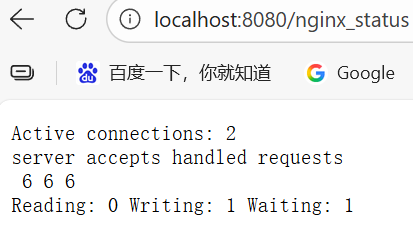

# 打个端口转发测试一下nginx_status的功能
kubectl port-forward services/nginx-service 8080:8080

部署nginx_exporter

Exporter的方式可以使用单独部署或者sidecar部署的方式，我这里使用单独部署方式

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
# nginx-exporter-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-exporter
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx-exporter
  template:
    metadata:
      labels:
        app: nginx-exporter
    spec:
      containers:
      - name: exporter
        image: nginx/nginx-prometheus-exporter:latest
        ports:
        - containerPort: 9113
        args:
        # 通过Service访问Nginx的stub_status
        - -nginx.scrape-uri=http://nginx-service.default.svc.cluster.local:8080/nginx_status
---
# nginx-exporter-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-exporter-service
  labels: # 与serviceMonitor的匹配标签对应
    app: nginx-exporter
spec:
  selector:
    app: nginx-exporter
  ports:
  - name: metrics
    port: 9113
    targetPort: 9113

kubectl apply -f nginx-exporter-deployment.yaml

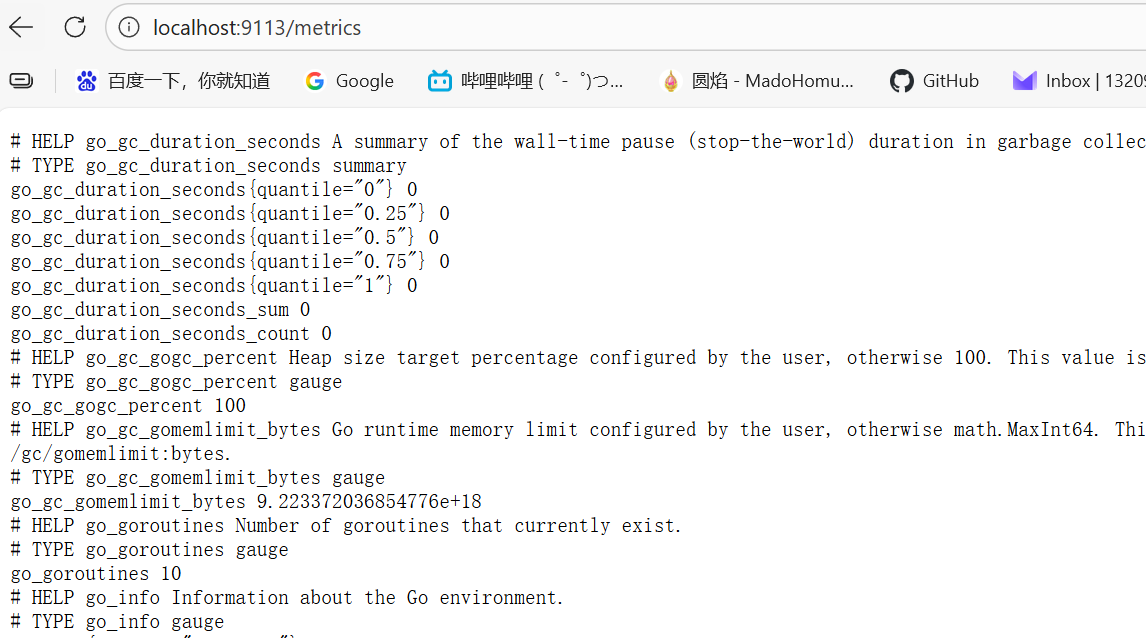

# 测试
kubectl port-forward services/nginx-exporter-service 9113:9113

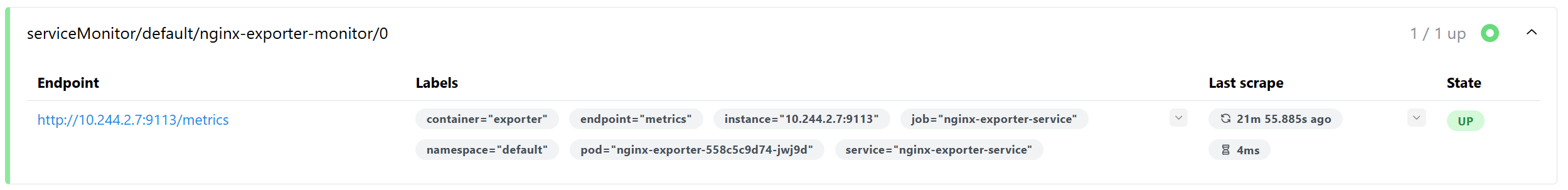

创建ServiceMonitor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# nginx-servicemonitor.yaml
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: nginx-exporter-monitor
  labels:
    release: prometheus  # 需要与prometheus.prometheusSpec.serviceMonitorSelector标签匹配
spec:
  selector:
    matchLabels:
      app: nginx-exporter  # 匹配nginx-exporter-service标签
  namespaceSelector:
    any: true  # 允许跨命名空间监控
  endpoints:
    - port: metrics  # 对应 nginx-exporter-service 的端口名
      interval: 30s  # 抓取间隔
      path: /metrics  # 指标路径

kubectl apply -f nginx-servicemonitor.yaml

# 修改prometheus.prometheusSpec.serviceMonitorSelector配置
prometheus:
  prometheusSpec:
    serviceMonitorSelector:
      matchLabels:
        release: prometheus
# 升级release
helm upgrade prometheus ./ -f values.yaml

自定义nginx告警规则

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

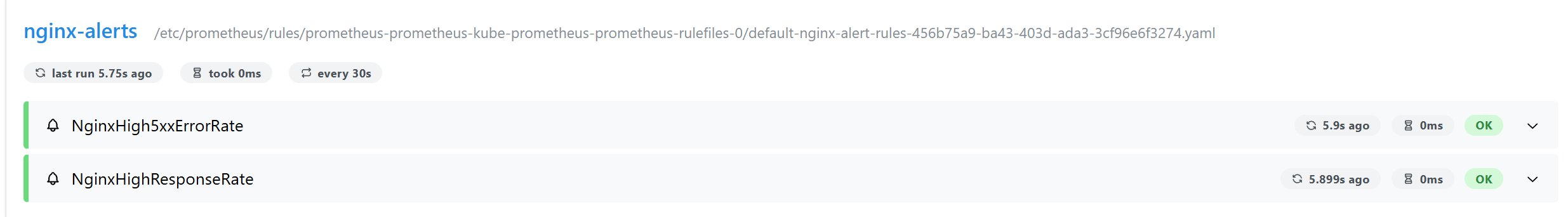

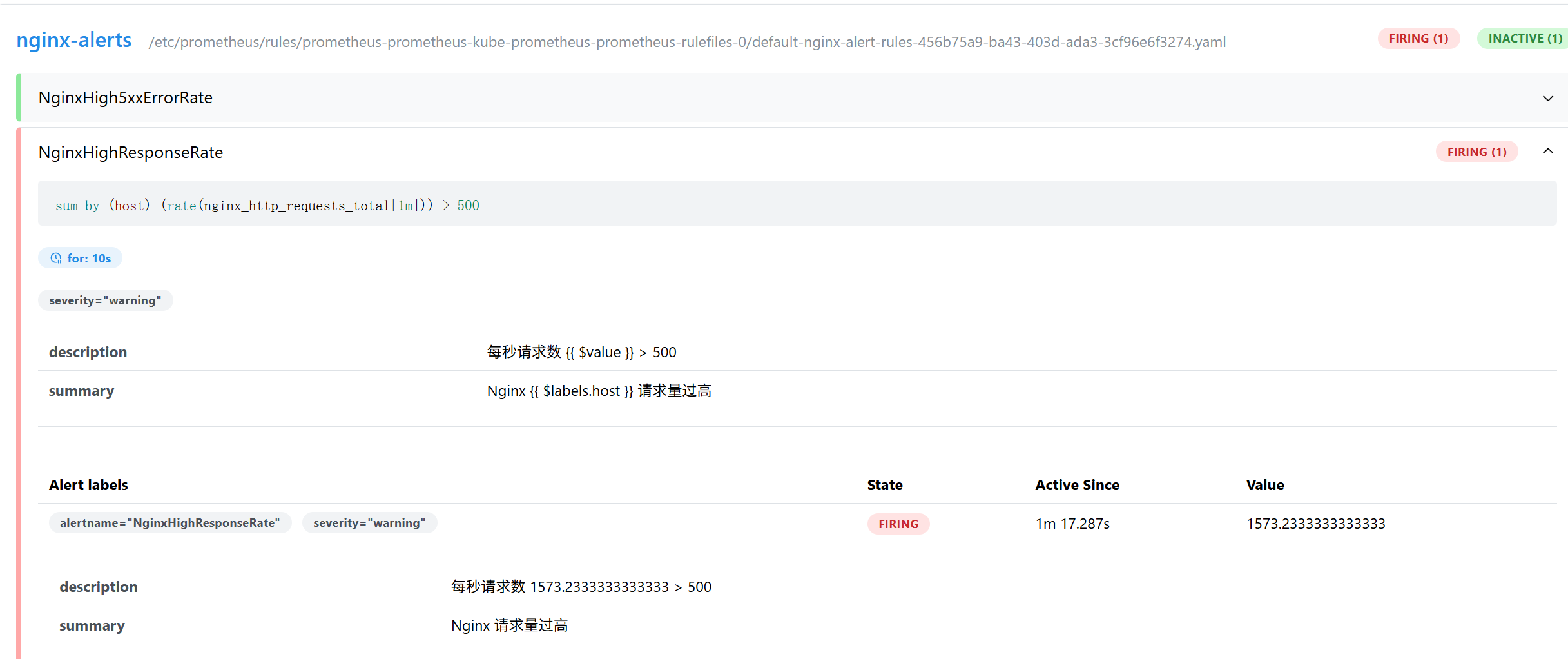

# 创建PrometheusRule
# nginx-alert-rules.yaml
---
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: nginx-alert-rules
  labels:
    release: prometheus  # 匹配的选择器
spec:
  groups:
  - name: nginx-alerts  # 告警规则组名称
    rules:
    - alert: NginxHigh5xxErrorRate  # 告警名称
      expr: |
        sum(rate(nginx_http_requests_total{status=~"5.."}[1m])) by (host)
        /
        sum(rate(nginx_http_requests_total[1m])) by (host)
        > 0.05  # 5xx 错误率 > 5%
      for: 2m  # 持续 2 分钟触发告警
      labels:
        severity: critical  # 告警级别
      annotations:
        summary: "Nginx {{ $labels.host }} 5xx 错误率过高"
        description: "5xx 错误率 {{ $value }} > 5%，持续 2 分钟"

    - alert: NginxHighResponseRate
      expr: |
        sum(rate(nginx_http_requests_total[1m])) by (host) > 500  # 每秒请求数 > 500
      for: 10s
      labels:
        severity: warning
      annotations:
        summary: "Nginx {{ $labels.host }} 请求量过高"
        description: "每秒请求数 {{ $value }} > 500"

kubectl apply -f nginx-alert-rules.yaml


# 修改chart变量文件，添加自动发现规则，并升级release
prometheus:
  prometheusSpec:
    ruleSelector:
      matchLabels:
        release: prometheus

helm upgrade prometheus ./ -f values.yaml

模拟测试告警

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
kubectl port-forward services/nginx-service 8081:80 &

# 安装ab 模拟高错误率，(略过)
yum install httpd-tools -y
ab -n 1000 -c 10 localhost:8081/error # 我手动加了段能返回500的配置段
cat > /etc/nginx/conf.d/default.conf <<EOF
server {
    listen       80;
    listen  [::]:80;
    server_name  localhost;
    location /error {
        return 502;
    }
    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
    }
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }
}
EOF

# 安装siege 模拟高并发
yum install siege -y
siege -c 255 -r 100 http://localhost:8081

配置altermanager

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
# 在values.yaml中添加
# alertmanager.config.global
alertmanager:
  config:
  config:
    global:
      resolve_timeout: 5m
      smtp_smarthost: 'smtp.163.com:25'
      smtp_from: 'alertwarning@163.com'
      smtp_auth_username: 'alertwarning@163.com'
      smtp_auth_password: 'GAANBCIHILSARBYD'
      smtp_require_tls: false
      ...
    route:
      receiver: 'default-email'  # 默认接收器
      group_by: ['namespace']
      group_wait: 30s
      group_interval: 5m
      repeat_interval: 12h
      routes:
        - receiver: 'null'
          matchers:
            - alertname = "Watchdog"
          continue: false  # 匹配后不再继续
    receivers:
      - name: 'null'  # 必须定义null接收器
      - name: 'default-email'
        email_configs:
          - to: '1320991378@qq.com'
            send_resolved: true
            headers:
              Subject: '[{{ .Status }}] {{ .Labels.alertname }}'
            html: '{{ template "email.default.html" . }}'
    templates:
      - '/etc/alertmanager/config/*.tmpl'
# 升级release
helm upgrade prometheus ./ -f values.yaml

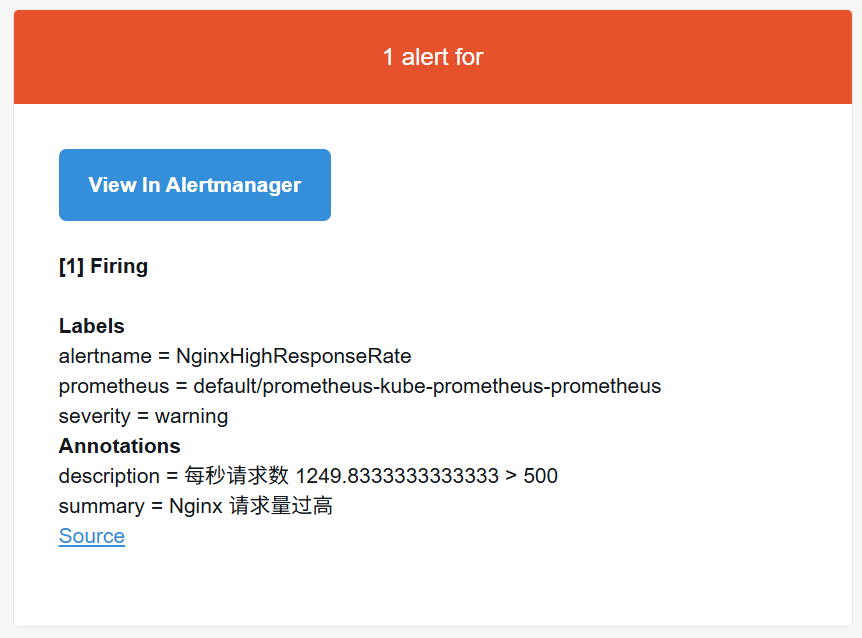

模拟测试发送邮件

1
siege -c 255 -r 10000 http://localhost:8081

原文作者：王盛

原文链接：https://akemi.zj.cn/2026/01/13/Prometheus-Helm/

发表日期：January 13th 2026, 9:06:43 pm

更新日期：January 13th 2026, 9:16:52 pm

版权声明：本文采用知识共享署名-非商业性使用 4.0 国际许可协议进行许可

CATALOG
  1. 1. 环境准备
    1. 1.1. Helm部署
    2. 1.2. 变量文件参数说明
  2. 2. Prometheus监控k8s
    1. 2.1. 自定义监控nginx
      1. 2.1.1. 部署nginx
      2. 2.1.2. 部署nginx_exporter
      3. 2.1.3. 创建ServiceMonitor
      4. 2.1.4. 自定义nginx告警规则
      5. 2.1.5. 模拟测试告警
      6. 2.1.6. 配置altermanager
      7. 2.1.7. 模拟测试发送邮件
Total : 304
2026
2025
2024
2023
Linux 云原生 云计算 开发 mysql
