Salt批量安装zabbix

2025/09/25

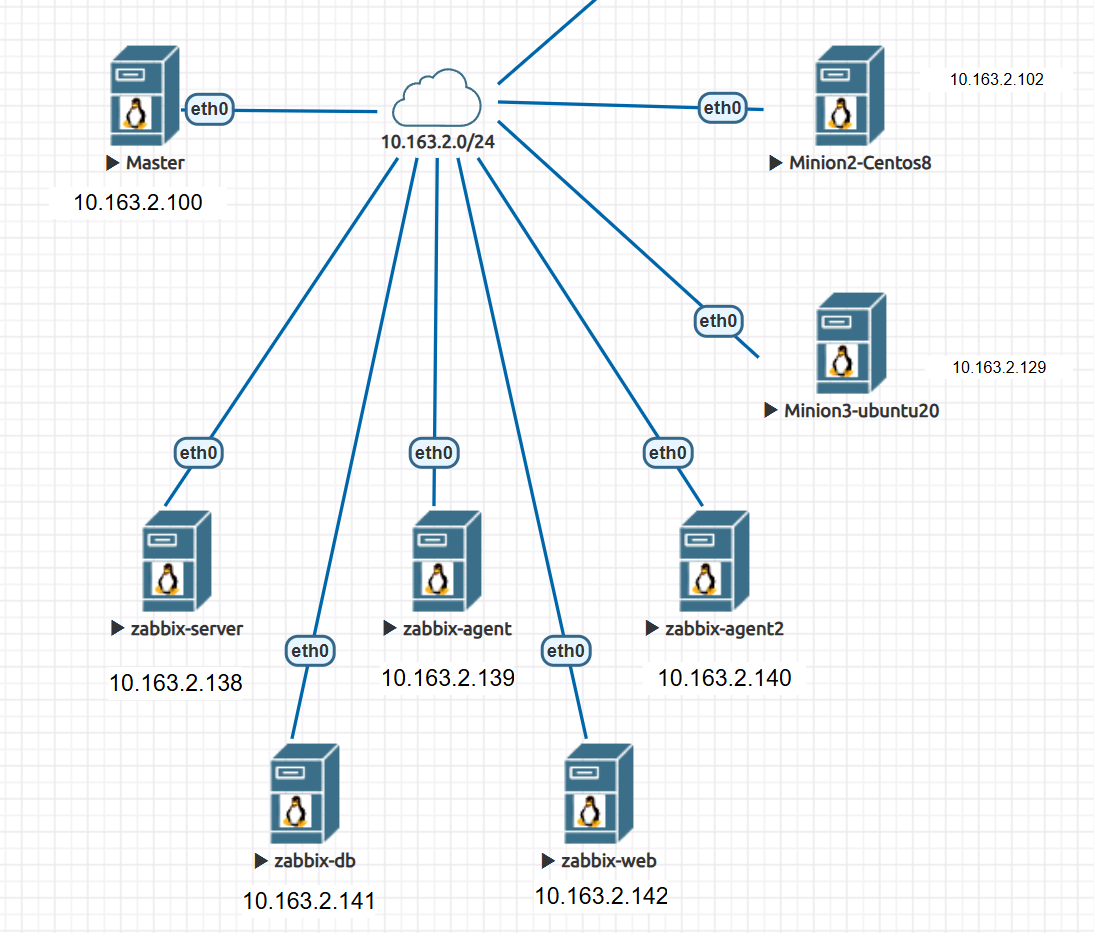

拓扑

环境说明

1
2
3
4
5
6
7
Centos7.9 root密码皆为1
10.163.2.100 master
10.163.2.138 zabbix-server
10.163.2.139 zabbix-agent
10.163.2.140 zabbix-agent2
salt 3006LTS
zabbix 5

参考步骤：Zabbix5.0安装与部署 · Akemi

环境准备

1
2
3
4
5
6
7
8
9
10
11
12
13
14
echo "10.163.2.138 zabbix-server
10.163.2.139 zabbix-agent
10.163.2.140 zabbix-agent2
10.163.2.141 zabbix-db
10.163.2.142 zabbix-web" >> /etc/hosts

# 更新软件源与安装
yum -y install sshpass
ssh-keygen -N '' -f ~/.ssh/id_rsa
for i in {zabbix-server,zabbix-agent,zabbix-agent2,zabbix-db,zabbix-web}
do
ssh $i 'curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo && yum makecache && yum -y install sshpass'
done

脚本部署salt-minion

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
vim salt-minion-centos.sh
#!/bin/bash
sshpass -p1 ssh-copy-id $1 -f
# 可选代理
ssh $1 "hostnamectl set-hostname $1"
ssh $1 'export http_proxy="http://192.168.10.238:7897" && export http_proxy="https://192.168.10.238:7897" && curl -fsSL https://github.com/saltstack/salt-install-guide/releases/latest/download/salt.repo | sudo tee /etc/yum.repos.d/salt.repo'
# ssh $1 'curl -fsSL https://github.com/saltstack/salt-install-guide/releases/latest/download/salt.repo | sudo tee /etc/yum.repos.d/salt.repo'
ssh $1 "yum -y install salt-minion"
ssh $1 "systemctl enable salt-minion --now"
ssh $1 "echo '10.163.2.100 salt' >> /etc/hosts"
ssh $1 "systemctl restart salt-minion"

直接改解析，这样就不需要改minion配置文件了

chmod +x salt-minion-centos.sh
./salt-minion-centos.sh zabbix-server
./salt-minion-centos.sh zabbix-agent
./salt-minion-centos.sh zabbix-agent2
./salt-minion-centos.sh zabbix-db
./salt-minion-centos.sh zabbix-web

salt-key -L
#...
#Unaccepted Keys:
#zabbix-agent
#zabbix-agent2
#zabbix-server
...

# 接受key
salt-key -A

Salt分组件部署zabbix-server

准备变量与软件源

定义zabbix pillar变量

1
2
3
4
5
6
7
8
9
10
11
12
vim /srv/pillar/zabbix.sls
zabbix_db_ip: 10.163.2.141
zabbix_db_name: zabbix
zabbix_db_user: zabbix
zabbix_db_password: zabbix
zabbix_server_ip: 10.163.2.138
zabbix_web_ip: 10.163.2.142

vim /srv/pillar/top.sls
base:
  'zabbix-*':
   - zabbix

准备zabbix的软件源

在prod环境下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
mkdir -p /srv/salt/prod/files/
cat > /srv/salt/prod/files/Centos7-SCLo.repo<<'EOF'
[centos-sclo-rh]
name=CentOS-7 - SCLo rh
baseurl=http://mirrors.aliyun.com/centos/7/sclo/$basearch/rh/
gpgcheck=1
enabled=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-SCLo

[centos-sclo-rh-testing]
name=CentOS-7 - SCLo rh Testing
baseurl=http://mirrors.aliyun.com/centos/7/sclo/$basearch/rh/
gpgcheck=0
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-SCLo

[centos-sclo-rh-source]
name=CentOS-7 - SCLo rh Sources
baseurl=http://vault.centos.org/centos/7/sclo/Source/rh/
gpgcheck=1
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-SCLo

[centos-sclo-rh-debuginfo]
name=CentOS-7 - SCLo rh Debuginfo
baseurl=http://debuginfo.centos.org/centos/7/sclo/$basearch/
gpgcheck=1
enabled=0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-SIG-SCLo
EOF

准备zabbix-server配置文件jinja模板

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
cat > /srv/salt/prod/files/zabbix_server.conf.j2 <<EOF
LogFile=/var/log/zabbix/zabbix_server.log
LogFileSize=0
PidFile=/var/run/zabbix/zabbix_server.pid
SocketDir=/var/run/zabbix
DBHost={{ pillar.zabbix_db_ip }}
DBName={{ pillar.zabbix_db_name }}
DBUser={{ pillar.zabbix_db_user }}
DBPassword={{ pillar.zabbix_db_password }}
SNMPTrapperFile=/var/log/snmptrap/snmptrap.log
Timeout=4
AlertScriptsPath=/usr/lib/zabbix/alertscripts
ExternalScripts=/usr/lib/zabbix/externalscripts
LogSlowQueries=3000
StatsAllowedIP=127.0.0.1
EOF

准备zabbix-web配置文件jinja模板

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
cat > /srv/salt/prod/files/zabbix_nginx.conf.j2 <<EOF
server {
        listen          80;
        server_name     {{ pillar.zabbix_web_ip  }};

        root    /usr/share/zabbix;

        index   index.php;

        location = /favicon.ico {
                log_not_found   off;
        }

        location / {
                try_files       $uri $uri/ =404;
        }

        location /assets {
                access_log      off;
                expires         10d;
        }

        location ~ /\.ht {
                deny            all;
        }

        location ~ /(api\/|conf[^\.]|include|locale|vendor) {
                deny            all;
                return          404;
        }

        location ~ [^/]\.php(/|$) {
                fastcgi_pass    unix:/var/opt/rh/rh-php72/run/php-fpm/zabbix.sock;
#                fastcgi_pass    unix:/var/opt/rh/rh-php73/run/php-fpm/zabbix.sock;
                fastcgi_split_path_info ^(.+\.php)(/.+)$;
                fastcgi_index   index.php;

                fastcgi_param   DOCUMENT_ROOT   /usr/share/zabbix;
                fastcgi_param   SCRIPT_FILENAME /usr/share/zabbix$fastcgi_script_name;
                fastcgi_param   PATH_TRANSLATED /usr/share/zabbix$fastcgi_script_name;

                include fastcgi_params;
                fastcgi_param   QUERY_STRING    $query_string;
                fastcgi_param   REQUEST_METHOD  $request_method;
                fastcgi_param   CONTENT_TYPE    $content_type;
                fastcgi_param   CONTENT_LENGTH  $content_length;

                fastcgi_intercept_errors        on;
                fastcgi_ignore_client_abort     off;
                fastcgi_connect_timeout         60;
                fastcgi_send_timeout            180;
                fastcgi_read_timeout            180;
                fastcgi_buffer_size             128k;
                fastcgi_buffers                 4 256k;
                fastcgi_busy_buffers_size       256k;
                fastcgi_temp_file_write_size    256k;
        }
}
EOF

cat > /srv/salt/prod/files/zabbix_php.conf.j2 <<EOF
[zabbix]
user = apache
group = apache

listen = /var/opt/rh/rh-php72/run/php-fpm/zabbix.sock
listen.acl_users = apache,nginx
listen.allowed_clients = 127.0.0.1

pm = dynamic
pm.max_children = 50
pm.start_servers = 5
pm.min_spare_servers = 5
pm.max_spare_servers = 35
pm.max_requests = 200

php_value[session.save_handler] = files
php_value[session.save_path]    = /var/opt/rh/rh-php72/lib/php/session/

php_value[max_execution_time] = 300
php_value[memory_limit] = 128M
php_value[post_max_size] = 16M
php_value[upload_max_filesize] = 2M
php_value[max_input_time] = 300
php_value[max_input_vars] = 10000
; php_value[date.timezone] = Europe/Riga
EOF

cat > /srv/salt/prod/files/zabbix_nginx.conf <<'EOF'
user nginx;
worker_processes auto;
error_log /var/opt/rh/rh-nginx116/log/nginx/error.log;
pid /var/opt/rh/rh-nginx116/run/nginx/nginx.pid;
include /opt/rh/rh-nginx116/root/usr/share/nginx/modules/*.conf;

events {
    worker_connections  1024;
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/opt/rh/rh-nginx116/log/nginx/access.log  main;

    sendfile        on;
    tcp_nopush      on;
    tcp_nodelay     on;
    keepalive_timeout  65;
    types_hash_max_size 2048;

    include       /etc/opt/rh/rh-nginx116/nginx/mime.types;
    default_type  application/octet-stream;
    include /etc/opt/rh/rh-nginx116/nginx/conf.d/*.conf;

    server {
        listen       80 default_server;
        listen       [::]:80 default_server;
        server_name  _;
        root         /usr/share/zabbix;
        include      /etc/opt/rh/rh-nginx116/nginx/default.d/*.conf;

        location / {
        }

        error_page 404 /404.html;
        location = /40x.html {
        }

        error_page 500 502 503 504  /50x.html;
        location = /50x.html {
        }

    }

}
EOF

区分组件写sls文件

基础部署sls文件

写完之后可以先测试一下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
基础部署文件
/srv/salt/prod/zabbix-basic.sls
disable selinux:
   cmd.run:
     - name: setenforce 0
#  selinux.mode:
#    - name: permissive

disable firewalld:
  service.dead:
    - name: firewalld
    - enable: no

add repo:
  file.managed:
    - name: /etc/yum.repos.d/Centos7-SCLo.repo
    - source: salt://files/Centos7-SCLo.repo

setup repo:
  cmd.run:
    - name: rpm -Uvh https://repo.zabbix.com/zabbix/5.0/rhel/7/x86_64/zabbix-release-5.0-1.el7.noarch.rpm
    - unless: rpm -q zabbix-release # 保证幂等性

enable repo:
  file.replace:
    - name: /etc/yum.repos.d/zabbix.repo
    - pattern: '^enabled=0'
    - repl: 'enabled=1'

db部署—写sls文件

因为我们用的是centos7.9，不支持mysql的模块，所以直接用shell来执行了，如果用cmd.run，没法保证幂等性

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
/srv/salt/prod/zabbix-db.sls
install pkgs:
  pkg.installed:
    - pkgs:
      - zabbix-server-mysql
      - mariadb-server
      - MySQL-python

start mariadb:
  service.running:
    - name: mariadb
    - enable: yes

create db for zabbix:
  mysql_database.present:
     - name: {{ pillar.zabbix_db_name }}
     - character_set: utf8
     - collate: utf8_bin

create local user:
   mysql_user.present:
     - name: {{ pillar.zabbix_db_user }}
     - host: 'localhost'
     - password: {{ pillar.zabbix_db_password }}
create remote user:
   mysql_user.present:
     - name: {{ pillar.zabbix_db_user }}
     - host: '%'
     - password: {{ pillar.zabbix_db_password }}

priviileges for local user:
 	mysql_grants.present:
     - name: {{ pillar.zabbix_db_name }}
     - user: {{ pillar.zabbix_db_user }}
     - database: {{ pillar.zabbix_db_name }}.*
     - grant: all privileges
priviileges for remote user:
   mysql_grants.present:
     - name: {{ pillar.zabbix_db_name }}
     - user: {{ pillar.zabbix_db_user }}
     - database: {{ pillar.zabbix_db_name }}.*
     - grant: all privileges
     - host: '%'

import db:
  cmd.run:
    - name: 'zcat /usr/share/doc/zabbix-server-mysql*/create.sql.gz | mysql -u{{ pillar.zabbix_db_name }} -p{{ pillar.zabbix_db_password }} {{ pillar.zabbix_db_name }}'
    - onchanges:
      - mysql_database: create db for zabbix

db部署—shell部署

我这里用了新的Mariadb

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
cat > /etc/yum.repos.d/MariaDB.repo <<EOF
[mariadb]
name = MariaDB
baseurl = http://yum.mariadb.org/10.6/centos7-amd64
gpgkey=https://yum.mariadb.org/RPM-GPG-KEY-MariaDB
gpgcheck=1
EOF

yum -y install zabbix-server-mysql MySQL-python MariaDB-server MariaDB-client
systemctl enable mariadb.service --now

mariadb-secure-installation # 交互式

# 创建databases
mysql -uroot -e "CREATE DATABASE zabbix CHARACTER SET utf8 COLLATE utf8_general_ci;"
# 给zabbix用户授权
mysql -uroot -e "grant all privileges on zabbix.* to 'zabbix'@'%' identified by 'zabbix';"

mysql -uroot -e "SET GLOBAL innodb_large_prefix=ON; SET GLOBAL innodb_file_format=Barracuda;"
zcat /usr/share/doc/zabbix-server-mysql*/create.sql.gz | mysql -uzabbix -pzabbix zabbix

部署zabbix-server—写sls文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
install pkgs:
  pkg.installed:
    - pkgs:
      - zabbix-agent
      - zabbix-server-mysql

set zabbix cfg:
  file.managed:
    - source: salt://files/zabbix_server.conf.j2
    - name: /etc/zabbix/zabbix_server.conf
    - mode: 644
    - tempalte: jinja

start zabbix-server:
  service.running:
    - name: zabbix-server
    - enable: yes

部署zabbix-web—写sls文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
install pkgs:
  pkg.installed:
    - pkgs:
      - zabbix-web-mysql-scl
      - zabbix-nginx-conf-scl

set zabbix-nginx cfg:
  file.managed:
    - source: salt://files/zabbix_nginx.conf.j2
    - name: /etc/opt/rh/rh-nginx116/nginx/conf.d/zabbix.conf
    - mode: 644
    - template: jinja

set zabbix-nginx cfg2:
  file.managed:
    - source: salt://files/zabbix_nginx.conf
    - name: /etc/opt/rh/rh-nginx116/nginx/nginx.conf

set php cfg:
  file.managed:
    - source: salt://files/zabbix_php.conf.j2
    - name: /etc/opt/rh/rh-php72/php-fpm.d/zabbix.conf
    - mode: 644
    - template: jinja

start nginx service:
  service.running:
    - name: rh-nginx116-nginx
    - enable: yes

start php service:
  service.running:
    - name: rh-php72-php-fpm
    - enable: yes

Salt部署zabbix-agent

准备配置文件

1
2
3
4
5
6
7
8
9
cat > /srv/salt/prod/files/zabbix_agent2.conf.j2 <<EOF
PidFile=/var/run/zabbix/zabbix_agent2.pid
LogFile=/var/log/zabbix/zabbix_agent2.log
LogFileSize=0
Server={{ pillar.zabbix_server_ip }}
ServerActive={{ pillar.zabbix_server_ip }}
Include=/etc/zabbix/zabbix_agent2.d/*.conf
ControlSocket=/tmp/agent.sock
EOF

写sls状态文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
vim /srv/salt/prod/zabbix-agent.sls
install agent:
  pkg.installed:
    - name: zabbix-agent2

set zabbix conf:
  file.managed:
    - source: salt://files/zabbix_agent2.conf.j2
    - name: /etc/zabbix/zabbix_agent2.conf
    - mode: 644
    - template: jinja

start agent:
  service.running:
    - name: zabbix-agent2
    - enable: yes

调整高级状态文件top.sls与应用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
cat /srv/salt/base/top.sls
...
prod:
  "zabbix*":
    - zabbix-basic
  "zabbix-server":
    - zabbix-server
  "zabbix-web":
    - zabbix-web
  "zabbix-agent*":
    - zabbix-agent

tree
.
├── base
│   ├── example.sls
│   ├── test.sls
│   └── top.sls
├── dev
│   ├── apache2.sls
│   ├── dhcp.sls
│   └── httpd.sls
└── prod
    ├── files
    │   ├── Centos7-SCLo.repo
    │   ├── zabbix_agent2.conf.j2
    │   ├── zabbix_nginx.conf
    │   ├── zabbix_nginx.conf.j2
    │   ├── zabbix_php.conf.j2
    │   └── zabbix_server.conf.j2
    ├── web.sls
    ├── zabbix-agent.sls
    ├── zabbix-basic.sls
    ├── zabbix-db.sls
    ├── zabbix-server.sls
    └── zabbix-web.sls

salt 'zabbix*' state.apply

原文作者：王盛

原文链接：https://akemi.zj.cn/2025/09/25/Salt-zabbix/

发表日期：September 25th 2025, 9:13:02 pm

更新日期：September 25th 2025, 9:15:57 pm

版权声明：本文采用知识共享署名-非商业性使用 4.0 国际许可协议进行许可

CATALOG
  1. 1. 环境准备
  2. 2. Salt分组件部署zabbix-server
    1. 2.1. 准备变量与软件源
      1. 2.1.1. 定义zabbix pillar变量
      2. 2.1.2. 准备zabbix的软件源
      3. 2.1.3. 准备zabbix-server配置文件jinja模板
      4. 2.1.4. 准备zabbix-web配置文件jinja模板
    2. 2.2. 区分组件写sls文件
      1. 2.2.1. 基础部署sls文件
      2. 2.2.2. db部署—写sls文件
      3. 2.2.3. db部署—shell部署
      4. 2.2.4. 部署zabbix-server—写sls文件
      5. 2.2.5. 部署zabbix-web—写sls文件
    3. 2.3. Salt部署zabbix-agent
      1. 2.3.1. 准备配置文件
      2. 2.3.2. 写sls状态文件
    4. 2.4. 调整高级状态文件top.sls与应用
Total : 278
2025
2024
2023
Linux 云原生 云计算 开发 mysql
